| ブランド名: | CSJY |
| モデル番号: | MBS70F-40A-1825-V3 |
| MOQ: | 2pcs |
| 価格: | Negotiate |
| パッケージの詳細: | カートン |
| 支払条件: | T/T |

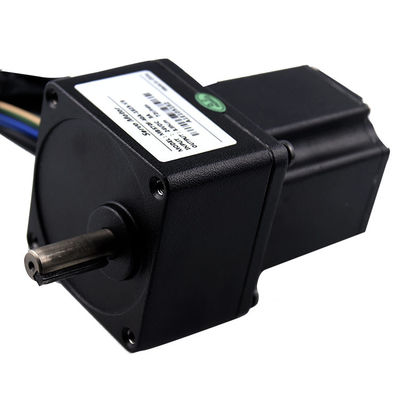

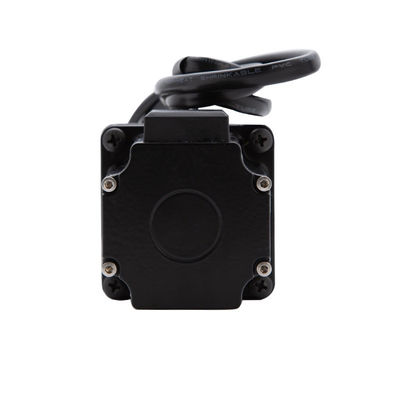

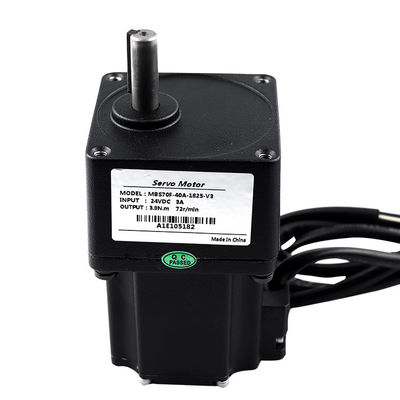

The BLDC Servo Motor 40W 1:25 is a high-performance, brushless DC motor system engineered for demanding automation and access control applications. This integrated servo solution combines a powerful 40-watt brushless motor with a precision 1:25 ratio planetary gearbox, delivering exceptional torque, smooth operation, and long-term reliability.
| Application | swing gate, speed gate, sliding gate |
|---|---|
| Features | fast opening and sensitive anti-pinch |
| Rated voltage | DC24V |
| Rated power | 40w |
| Rated current | 3A |
| Poles | 5 |
| Rated speed | 1800rpm |
| Ratio | 1:25 |
| Output speed | 72rpm |
| Output torque | 3.8nm |
Swing gate
Speed gate
Tripod turnstile gate
Sliding gate
Flap gate
|
|
