| ブランド名: | CSJY |
| モデル番号: | GEBS130F-80A-01DG4Z-B8ET-ST-01 |
| MOQ: | 2 |
| 価格: | 交渉可能 |
| パッケージの詳細: | 段ボール箱 |
| 支払条件: | LC、T/T |

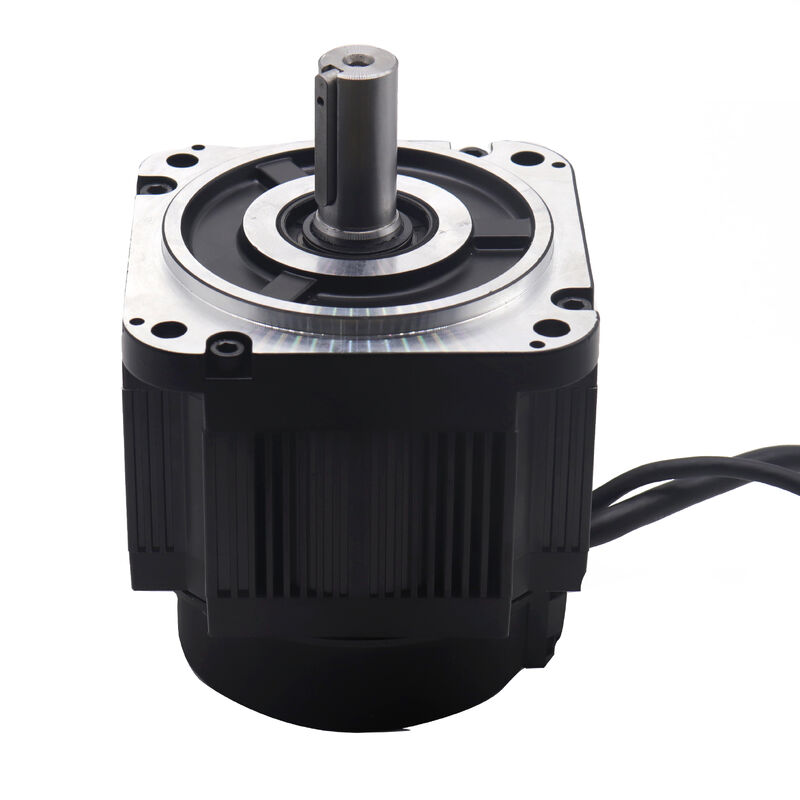

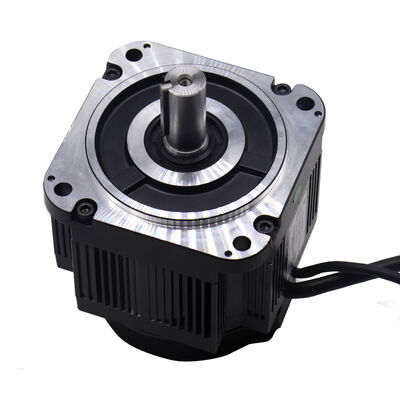

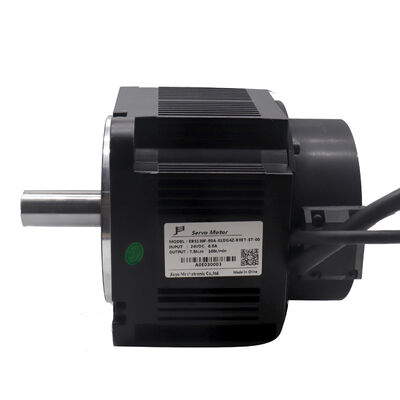

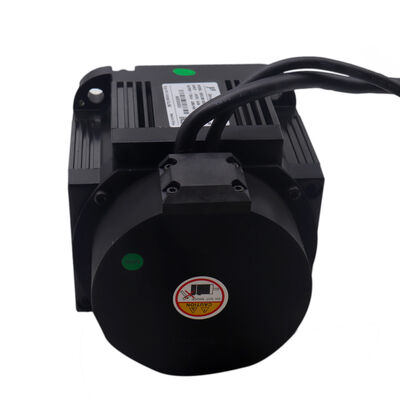

100rpm Incremental 2500 Lines High-torque DC Servo Motor, Servo Motor For Subway Wing Gates,speed Gate Motor
7.5Nm high torque output
Rated power 80W, rated speed 100RPM.
With 2500 line incremental encoder feedback
Motor protection grade IP65
| Rated Power | 78.5W |
| Rated Voltage | 24VDC |
| Rated Current | 6.8A |
| Rated torque | 7.5Nm |
| Rated speed | 100rpm |
| Poles | 4 |
| Encoder resolution | 2500 lines |
| Insulation class | F |
| Operating temperature | -25℃`55℃ |
| weight | 6.5kg |
Shenzhen Jiayu Mechatronic Co.,,Ltd, founded in 2016, is a national high-tech enterprise specialising in providing servo electriccontrol solutions with high-precision servo control technology as the core, integrating R&D, production, sales and service.
Since its establishment,the company has been focusing on product development and innovation. The company has a researchand development centre in Shenzhen,coveringan area of more than2,000 square meters, with an experienced and knowledgeableR&D team.The company has an experienced and knowledgeable R&D team, with more than 50 R&D personnel in hardware andsoftware, accounting for more than 60% ofthe total number of personnel;in Dongguan,the company purchased more than 6,000square meters of plant as a production base to ensure production capacity.
The company allocates large sums of money for R&D every year, and its R&D investment accountsfor more than 10%o ofits operatingincome. Through high investment in R&D,the company has formed a competitive advantage centred on technological innovation drive,and has obtained more than 40 invention patents, more than 50 utility model patents, more than 120 sofware copyrights and a series oftechnological breakthroughs, which realises the transformation of new technologies into products and services, and helps customerstorealise the maximum benefits with limited resources.
|
| ブランド名: | CSJY |
| モデル番号: | GEBS130F-80A-01DG4Z-B8ET-ST-01 |
| MOQ: | 2 |
| 価格: | 交渉可能 |
| パッケージの詳細: | 段ボール箱 |
| 支払条件: | LC、T/T |
100rpm Incremental 2500 Lines High-torque DC Servo Motor, Servo Motor For Subway Wing Gates,speed Gate Motor
7.5Nm high torque output
Rated power 80W, rated speed 100RPM.
With 2500 line incremental encoder feedback
Motor protection grade IP65
| Rated Power | 78.5W |
| Rated Voltage | 24VDC |
| Rated Current | 6.8A |
| Rated torque | 7.5Nm |
| Rated speed | 100rpm |
| Poles | 4 |
| Encoder resolution | 2500 lines |
| Insulation class | F |
| Operating temperature | -25℃`55℃ |
| weight | 6.5kg |
Shenzhen Jiayu Mechatronic Co.,,Ltd, founded in 2016, is a national high-tech enterprise specialising in providing servo electriccontrol solutions with high-precision servo control technology as the core, integrating R&D, production, sales and service.
Since its establishment,the company has been focusing on product development and innovation. The company has a researchand development centre in Shenzhen,coveringan area of more than2,000 square meters, with an experienced and knowledgeableR&D team.The company has an experienced and knowledgeable R&D team, with more than 50 R&D personnel in hardware andsoftware, accounting for more than 60% ofthe total number of personnel;in Dongguan,the company purchased more than 6,000square meters of plant as a production base to ensure production capacity.
The company allocates large sums of money for R&D every year, and its R&D investment accountsfor more than 10%o ofits operatingincome. Through high investment in R&D,the company has formed a competitive advantage centred on technological innovation drive,and has obtained more than 40 invention patents, more than 50 utility model patents, more than 120 sofware copyrights and a series oftechnological breakthroughs, which realises the transformation of new technologies into products and services, and helps customerstorealise the maximum benefits with limited resources.
